All Aura systems are designed in close partnership with our customers to meet their specific needs.

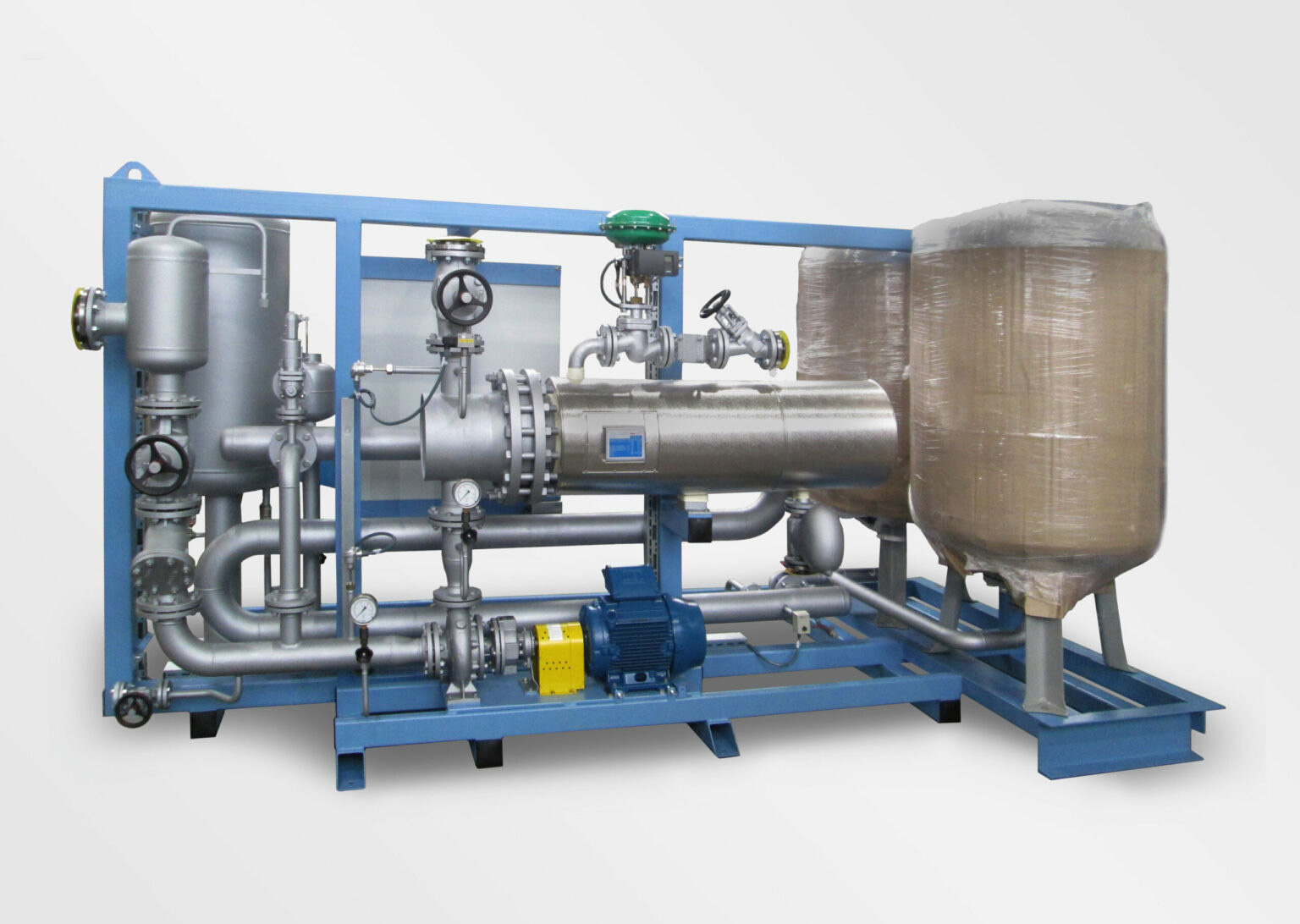

Thermal Oil or Steam Heated Hot Water System
System Properties：
Heating Type：Steam / Thermal Oil
Medium：Water
Supply Temperature：120°C – 230°C
Load Range：up to 3000 kW
Hot water heating system using thermal oil or steam for heat production. The system can be integrated into a wide range of industrial processes requiring a controlled supply of heat, for example to heat autoclaves, calenders, extruders or agitator vessels. The heating system operates within a temperature range of 120°C – 230°C and generates a power of up to 3000 kW.
Example：
1100kW, 165 m3/h, 250°C
Steam Heated Thermal Oil System
System Properties：
Heating Type：Steam
Medium：Thermal Oil
Supply Temperature：120°C – 230°C
Load Range：up to 3000 kW
Heating systems with thermal oil are characterised by excellent energy efficiency by minimal wear. The steam-heated thermal oil system is suitable for heating processes that need to be precisely tempered and require different temperature levels. Steam as a heat transfer medium is often not suitable as it can be used for precise temperature control.
Example：
220kW, 40 m3/h and 190°C incl. 4 Secondary Control Circuits

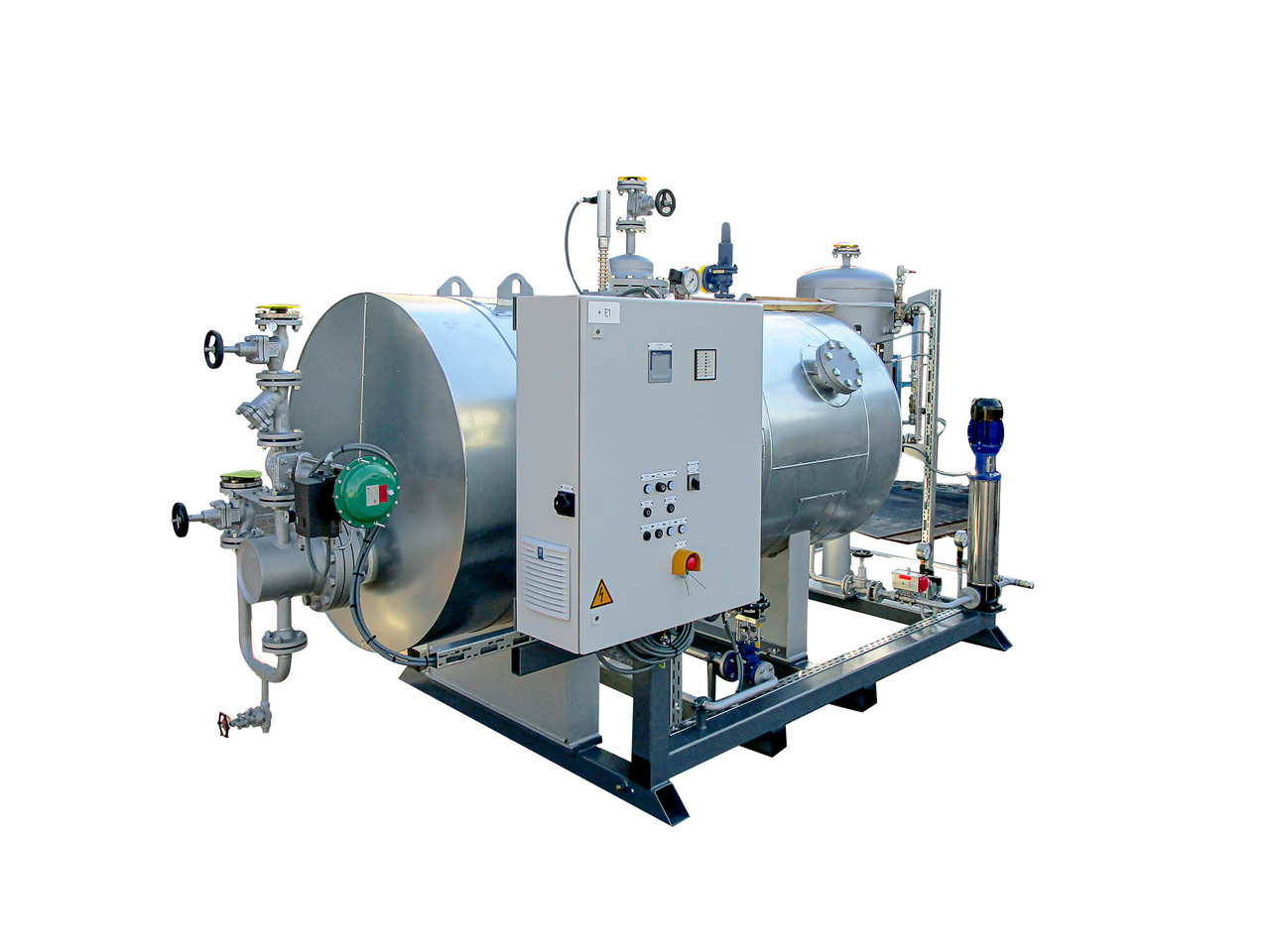

Steam Generators, Thermal Oil Heated
System Properties：
Heating Type：Thermal Oil
Medium：Steam
Supply Temperature：120°C – 150°C
Load Range：up to 1000 kW
The AURA steam generator system is indirectly heated with thermal oil and can generate a steam pressure of up to 30 bar. The AURA steam generator system operates within a temperature range of 120°C – 240°C and has an additional pre-installed feed water degassing unit.

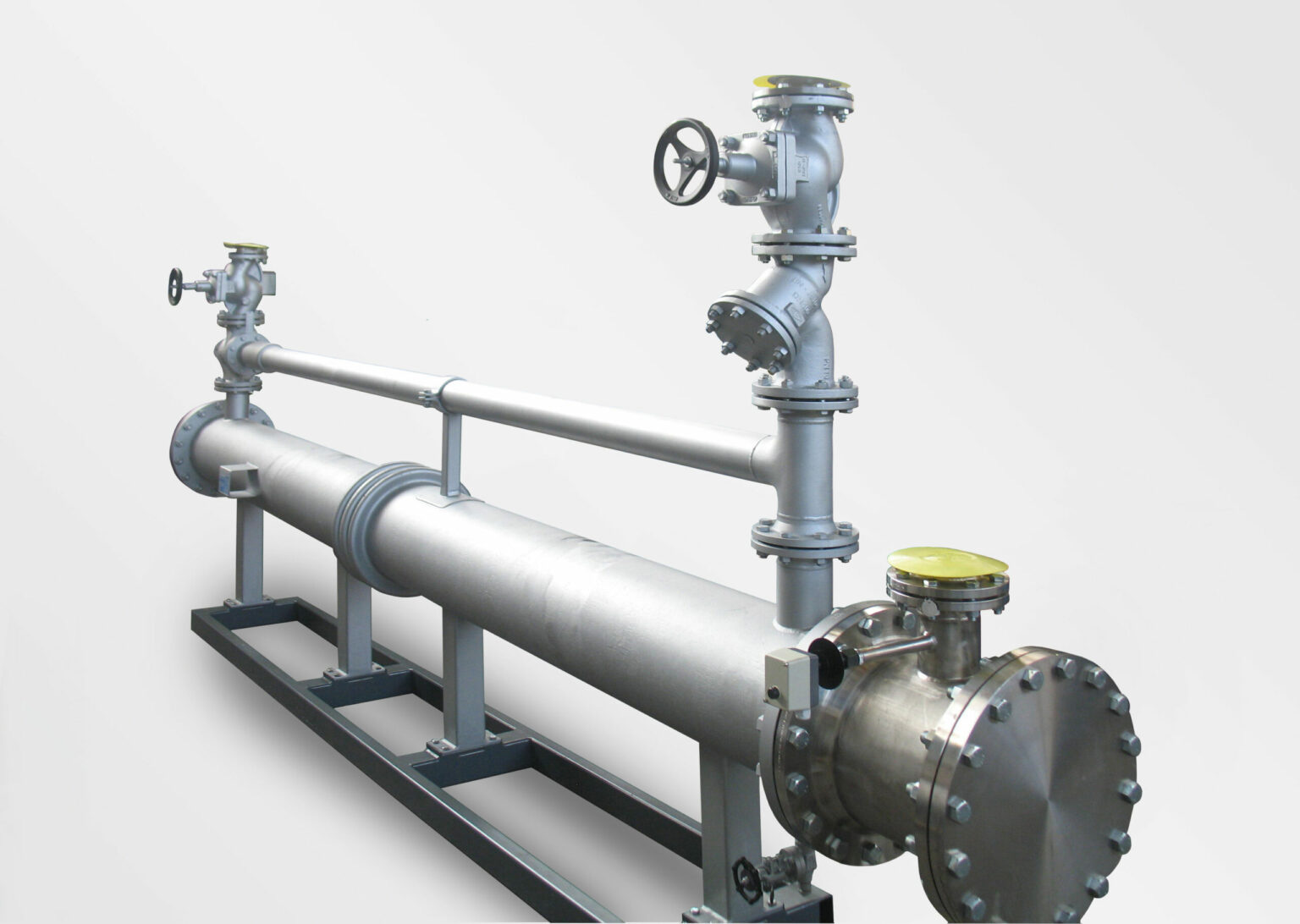

Steam or Thermal Oil Heat Exchanger System for Edible Oil
System Properties：
Heating Type：Steam / Thermal Oil
Medium：Cooking / Edible Oil
Supply Temperature：120°C – 180°C
Load Range：up to 3000 kW
The heating system for edible oil is operated with thermal oil or steam and is ideal for use in the food processing industry. Both the thermal oil heated version and the steam heated version operate in a edible oil temperature range between 120°C to 240°C and generate up to 3000 kW of power.

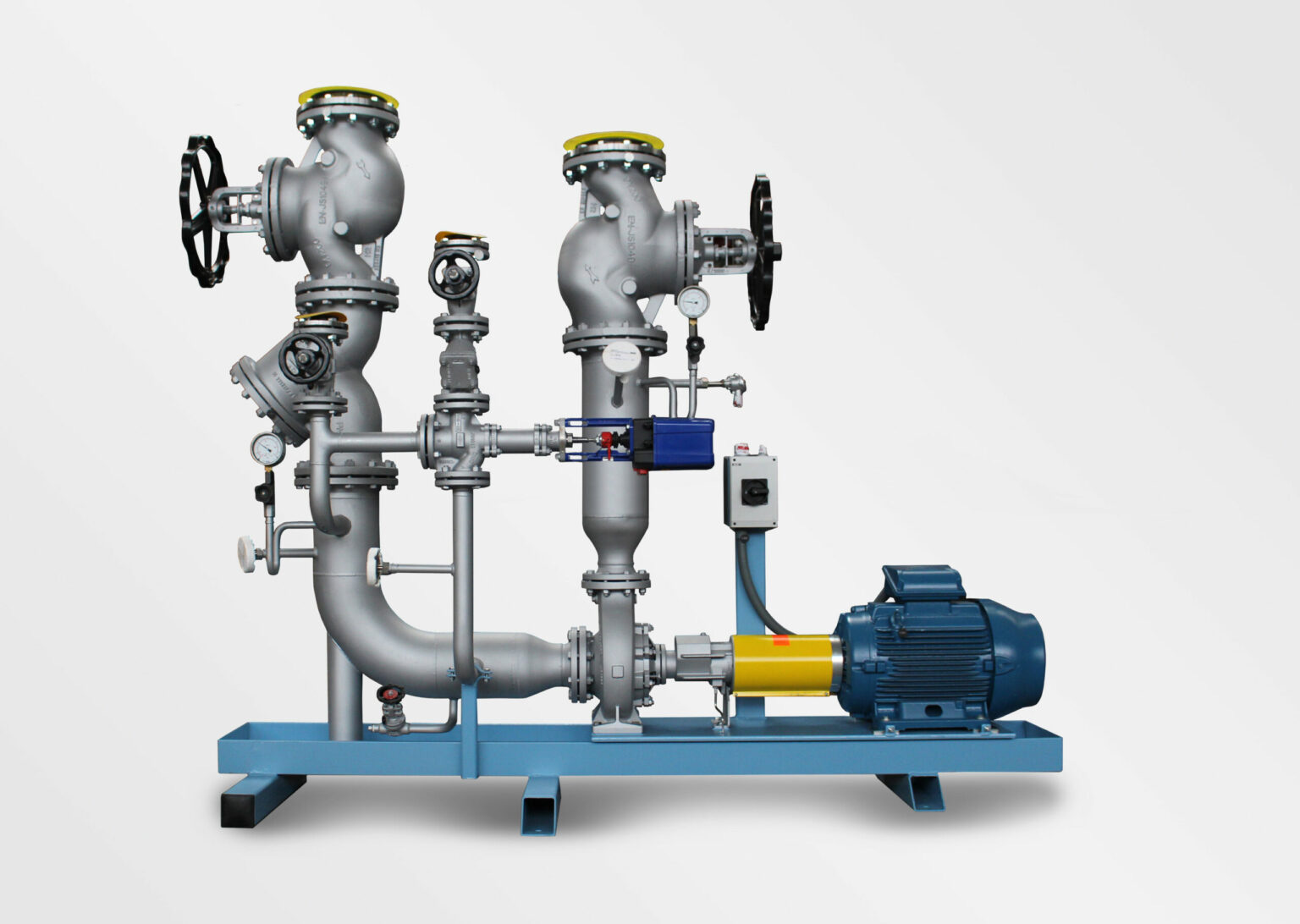

Secondary Control Circuit for Temperature Control
System Properties：
Heating Type：Thermal Oil or Water
Medium：Thermal Oil or Water
Supply Temperature：Up-to 430°C
Load Range：up to up to 1000 m3/h volume flow
Secondary control circuits supply consumers with heat and cold at precisely adjustable media temperatures. Several secondary circuits can be supplied by one heater. Thus, a wide range of different temperature levels and outputs is possible with one heater source. AURA secondary circuits are available both with and without coolers.
